Eco

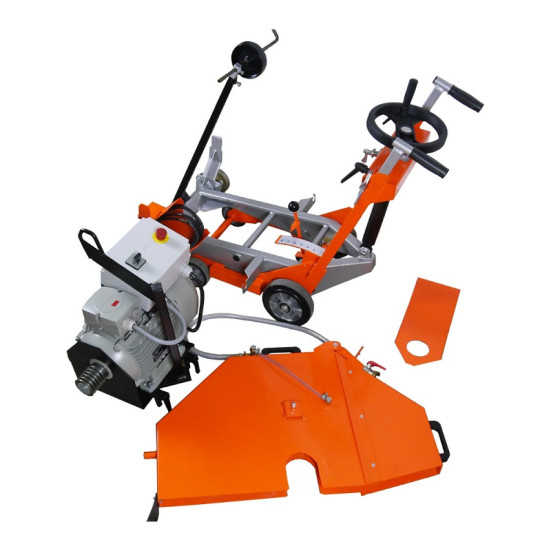

- Compact and solid chassis, demountable into 3 parts
- Adjustable handle bars for operators comfort
- Continuously adjustable cutting depth
- E-Motor easy to remove by quick mount plate
- Right- and Lefthand blade operation
- Divisible blade guard – can be raised for cutting against walls
- GK water connection to connect to external water supply
- Emergency stop
- Parking break
Specifications | |
Power | 400V; 11kW; 32A |
Max cutting depth | 320 mm |
Blade diameter ø(max.) | 800 mm |
Shaft size | 25,4 mm |
Watertank | no |
Motor: | 3-phase electric |
Shaft Speed | 1.430 min-1 |
Feed motion | Push |
Cutting depth adjustment | Handwheel |
Power transmission | V-belt Kit |
Dimensions L x W x H | 1.220×680×880 mm |
Weight | 142 kg (313lbs) |
