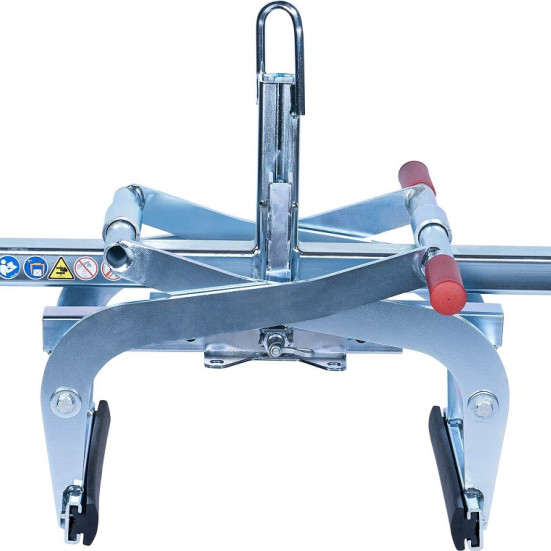

Suitable for handling steps, kerb stones etc. in conjunction with a lifting device.
- Easily adjustable opening width by means of a spring-loaded bolt.
- Considerable inside height. Conical kerb stones are also gripped securely, as the gripper has an inside height of 185 mm (7¼ inch) thus being able to grip underneath the conical form.
- Lifting eye for attaching to crane hook.
- Automatic release for fully automatic switch-over from “full” to “empty”.
- Exchangeable profiled rubber seals.
- Galvanised finish.
For more information download the user instruction guide here
Specifications | |
Working Load Limit | 600kg |
Weight | 32kg |
Gripping Range | 50-600mm |
Length of Gripper | 350mm |
Inside Height | 185mm |
