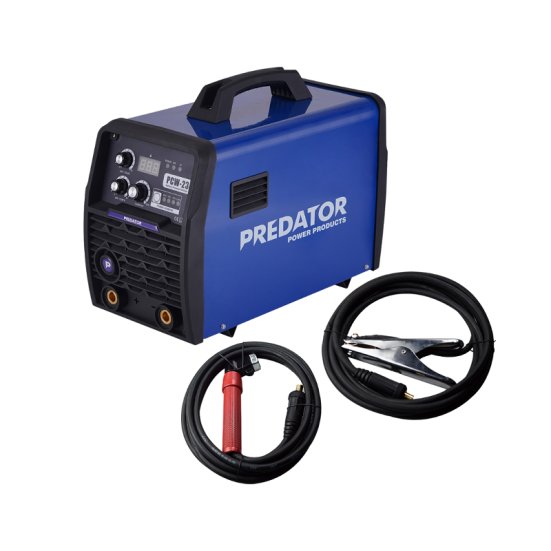

Heavy Duty design 2400WH battery powered 150amp stick welder
With our battery stick welder PCW-23, welding jobs like repair welding in the mountains, installations in the countryside or welding operations at exposed locations become much easier than ever before.
After fully charging, it can weld 41 pieces of 3.25 mm electrodes or 85 pieces of 2.5mm electrodes.
Features
- Completely battery-powered system - no long power cords, heavy cables or generators necessary
- Heavy Duty Design 3.25mm electrodes can weld up to 41 pieces, or 2.5mm electrodes can weld up to 85 pieces
- Hot-start and arc force ensures excellent welding performance
- Battery power indicator Under[1]voltage, over-heating alarm
| Specifications | |
| Charging Voltage | 110 - 240V |
| Rated Frequency | 50/60 Hz |
| Cycle Times | 1500 Cycles |
| Battery Voltage | 48V |
| Charge Time | 3.5 - 4.0 Hours |
| Battery Capacity | 2400 WH |
| Welding current Range | 10 - 015OA |
| Welding Performance | 3.2mm 41 pcs |
| Size | 46*21*35 |
| Machine Weight | 23Kg |
