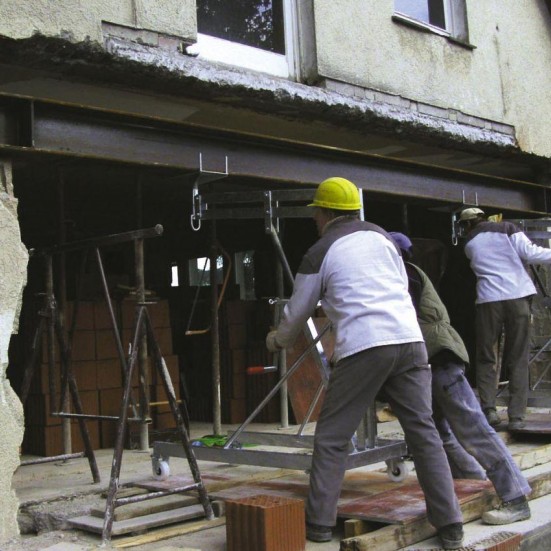

The Beam Lifter is a compact detachable elevator on wheels for lifting and fitting heavy loads such as steel beams, capable of lifting 400kg to a height of 3m.
Features
- Lifting capacity 400 kg, maximum lifting height 3m
- High precision by using screw thread adjustment
- Folds down to only 70cm high allowing access to the narrowest doors
- Will fit in to the back of most estate cars
- Easy to build up
- No cables, pulleys or guides
- Equipped with a rotational platform and crane hook to lift loads from the ground
For more information download the beam lifter user manual here
| Specifications | |
| Height | 110cm to 300cm |
| Platform | 36cm x 22cm x 11cm |
| Weight | 70kg |
| Dimensions | 157cm x 78cm x 164cm |
