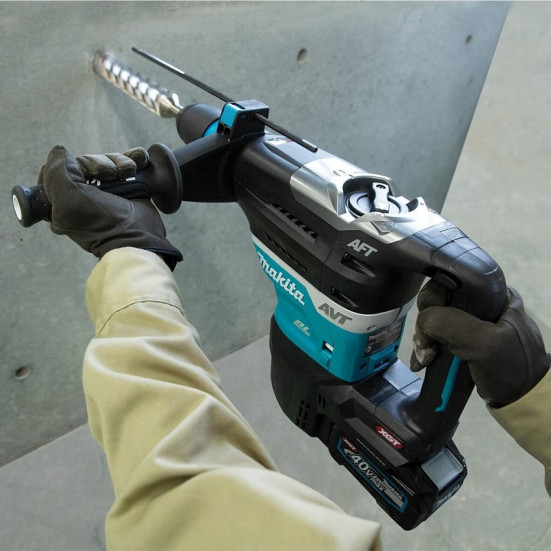

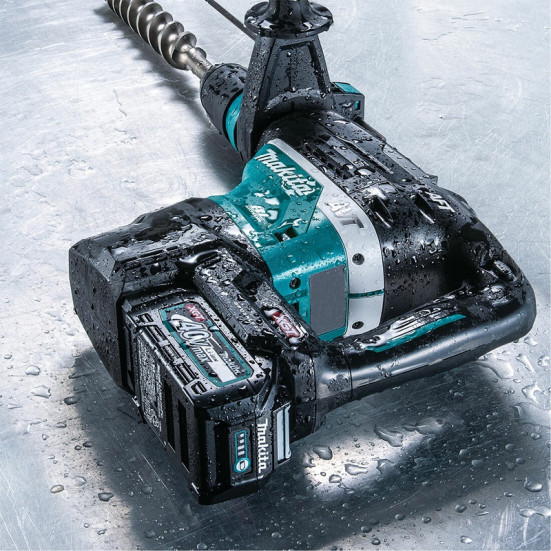

A medium combi hammer with an ideal drilling range for holes up to 24 mm, but can go up to 40 mm in concrete.
If there is a sudden reduction in speed or if the drill jams in the material, Active Feedback Sensing Technology (AFT) comes into play and switches the machine off reducing risk of injury.
Its equipped with electronics for constant speed, soft no load, soft start and variable speed control.
It has extremely low vibration level due to Anti Vibration Technology (AVT). Only 5.0 m/s²
Soft no load; more comfortable and durable due to lower idling speed
With double LED lighting for better visibility of the work
For more information download the user instruction guide here
Specifications | |
Voltage: | 40v XGT |
Max. in Concrete (TCT Bit) | 40 mm |
Max. in Concrete (TCT Core) | 105 mm |
Optimum Drilling Range | 18 - 25mm |
Impact Energy | 8.0 J |
Shank | SDS Max |
Blows per Minute: | 1450 - 2900 bpm |
No Load Speed | 250 - 500 rpm |
Weight: | 7.4 - 8.2 kg |
Noise and Vibration | |
Noise Sound Pressure | 91 dB(A) |
Noise Sound Power | 102 dB(A) |
Noise K Factor | 3 dB(A |
Vibration K Factor | 1.5 m/sec² |
Vibration | Hammer Drilling: 5.0 m/sec² |
Vibration | Chiselling: 4.0 m/sec² |
