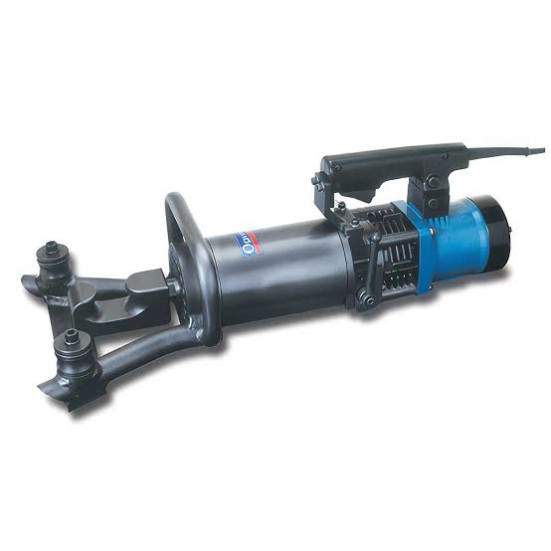

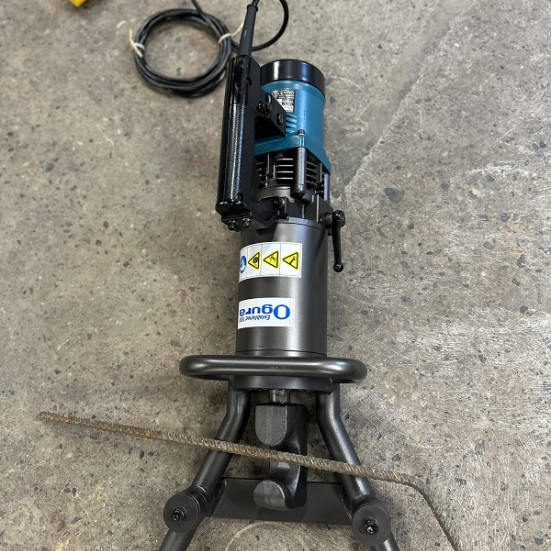

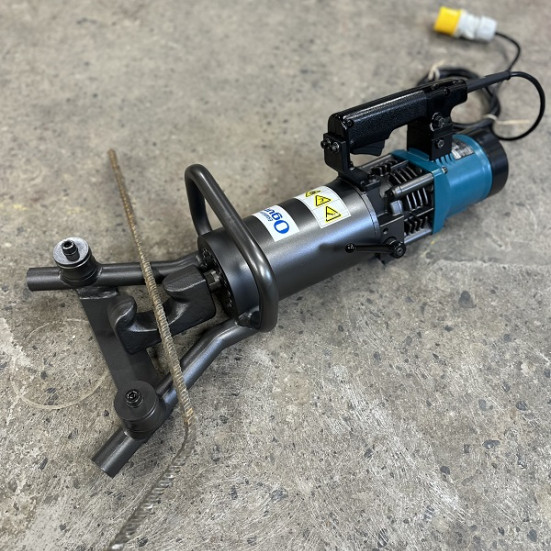

High Tensile 32mm Rebar Bender. Stand-alone bender with unique built in hydraulic pump. Capable of both “push bending” and “pull bending” with free rotating bending hook.
This portable automatic rebar bender comes with portable electric pump and an operation switch to start the machine safely and operate efficiently. It is widely used in the construction engineering for bending rebar, steel bar, steel rod, etc. The portable rebar bender offers excellent performance to help save valuable man hours by bending rebar (16 to 32 mm) in seconds. The bending angle is 0-90 degrees.
Features
- Low noise operation and is only on while bending for reduced unnecessary wear.
- A sturdy and durable machine body with steel bent head frame for standing super-hard rebar with strong clamping force and reducing the steel rebar waste.
- Excellent performance to help save valuable man hours by bending rebar 16 to 32 mm in seconds. The bending angle is 0-90 degrees.
- A precision pressure relief valve for automatically releasing the pressure. The user simply opens the pressure relief valve to remove the steel after the steel is successfully bent.
| Specifications | ||
| Motor Single Phase | 110 -115 V | Double Insulation |
| Max Bending Capacity | Max. D32 / #10 (620N/mm2 (63kgf/mm2)) = Grade60 / SD490 | |
| Bending Speed | ||
| 90 degrees bend for D32 (#10) rebar | push bend: approx. 16s | |
| pull bend: approx. 15s | ||
| Min. Required Height from the Ground when 90 deg Bend | push bend: approx. 495 mm | |
| pull bend: approx. 185 mm | ||
| Dimensions L x W x H | 670 mm x 302 mm x 219 mm | |
| Weight | 25.4 kg |
